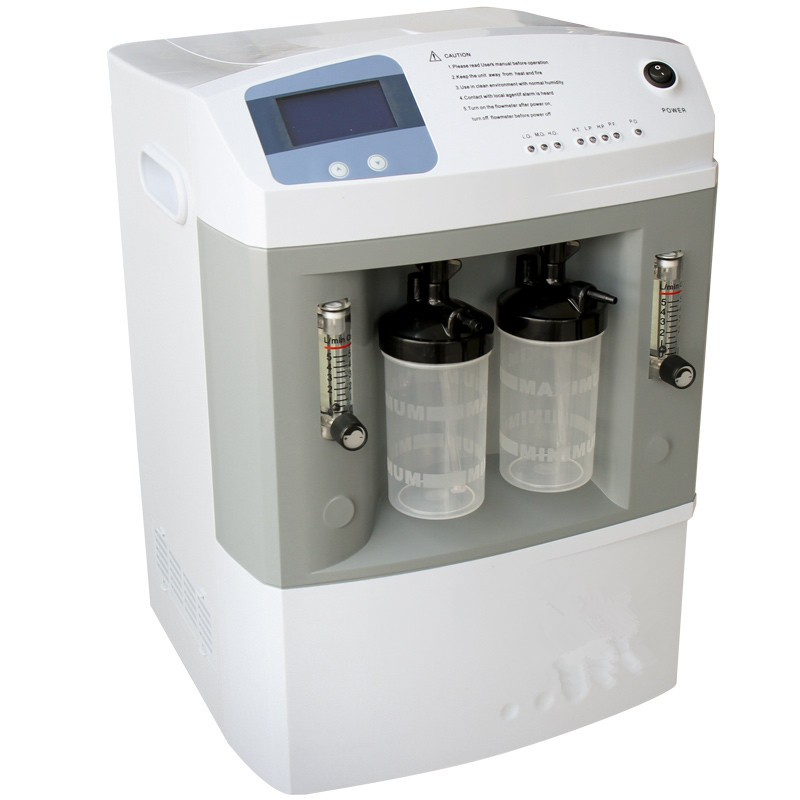

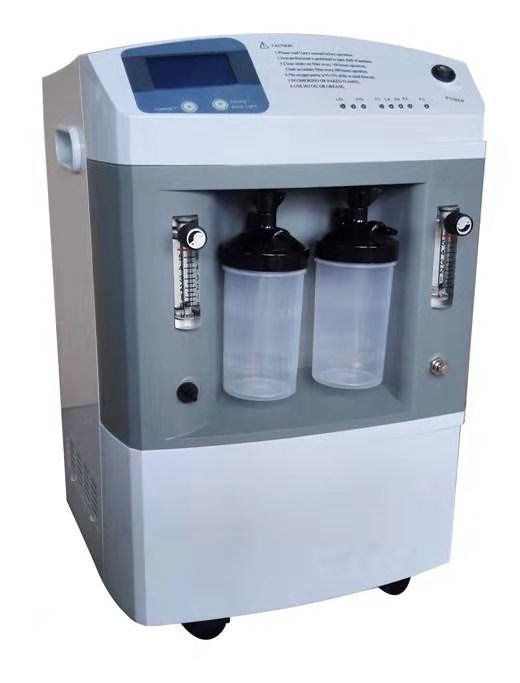

Medical Oxygen Generator (10L/min)

Product Item：JAY-10

Hospital Medical Oxygen

Household 5L oxygen concentrator

Dual Flow

10L/min

Description

Product Parameter

Specification

Model	JAY-10
Flow rate	0-10L/min
Purity	93±3%
Outlet Pressure (Mpa)	0.04-0.07
Sound Level	≤50db
Power	AC230V, 50Hz
Power Consumption	≤530W
LCD display	Operating pressure, Present Working Time,
LCD display	Accumulating Time, presetting Time from 10mins to 40hours
Alarm	Power failure alarm, High&Low pressure alarm
Alarm	Temperature alarm, Low purity alarm.
Net Weight	25Kgs

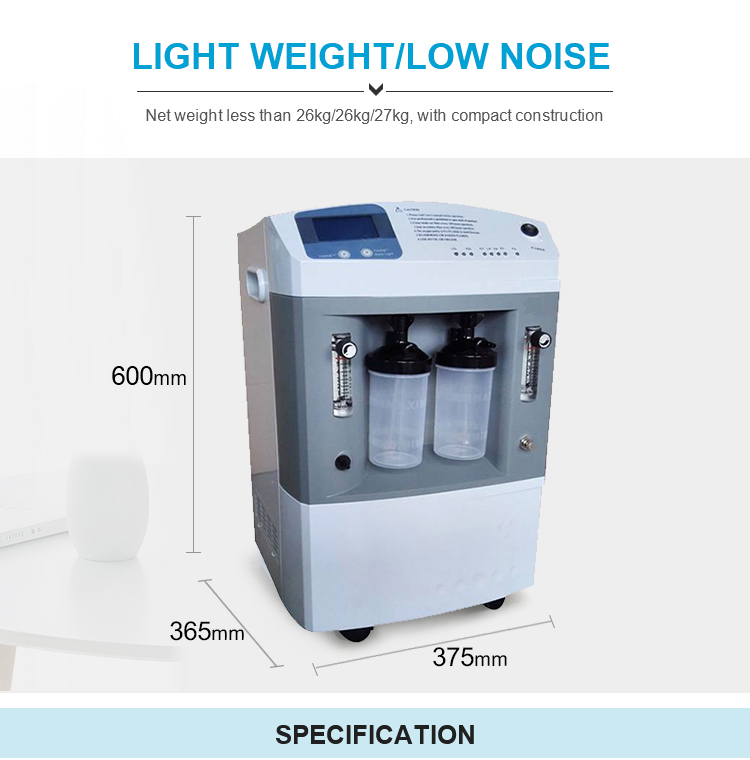

Size (mm)	365375600mm

Optional:

Nebulizer(Atomization)

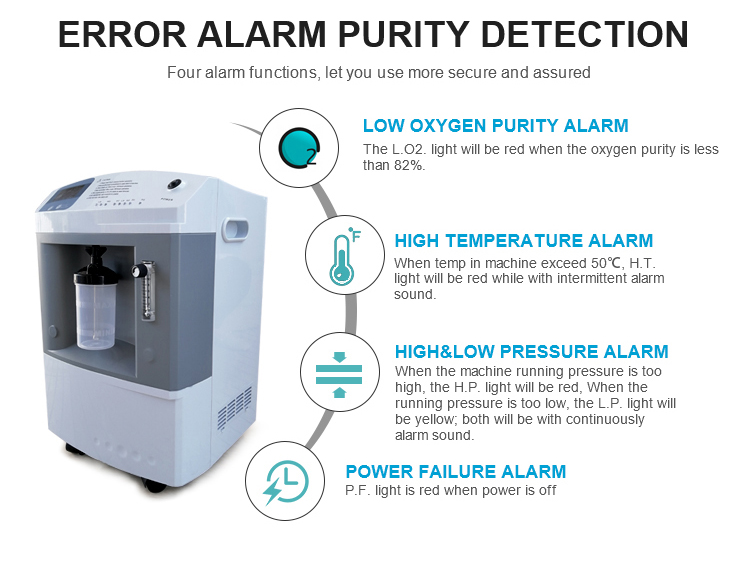

Low purity alarm: when oxygen purity is above 82%, it will give green light; when the purity is blow 82%( 82% not included), it will give red light
Maintenance alarm: alarm for maintenance after 3000 hours operation
Alarm for high temperature inside systems above 50°C
Pulse oximeter: fingertip pulse oximeter is available for monitoring patient oxygen saturation on site.
Small LCD display: accumulating time; present working time presetting time

Main Features

Features

Window filter and inlet filters easy to replace and wash;

The metal outlet is designed to be used with the humidifier adaptor;

The easy dial flow control, makes setting the flow easy for any patients;

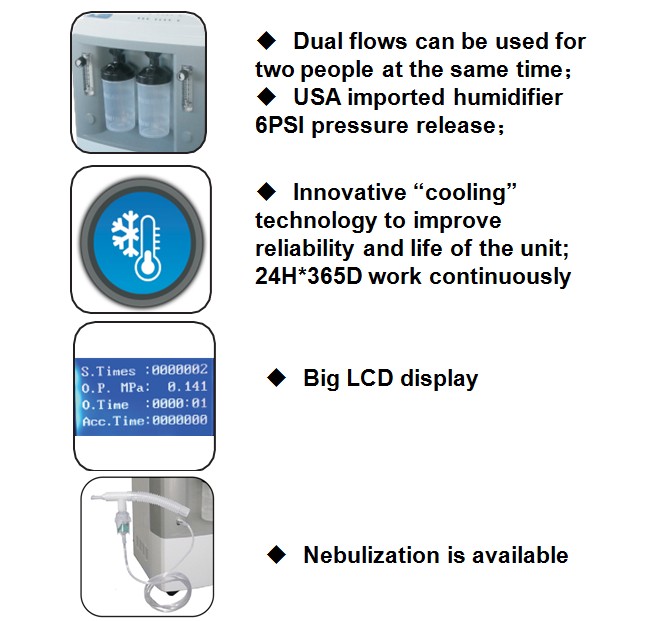

Innovative big size LCD display convenient to view the operating parameters ;

US humidifier bottle with 6 psi pressure enjoy with comfortable breathing oxygen;

Inner case housing adopt Ceramics technique,non spray paint;

Customized mute cotton make sure non pulverization phenomenon min 3 years;

The inside pipeline use the Medical class silicone tube and nylon tube, more safe than industrial silicone tube and plastic tube, no pollution, no peculiar smell;

Cooling system: copper tube and aluminum fins, compare with only aluminium or copper tube, better for heat dissipation and ensure the machine to continuously work for 24 hours without overheat interruption;

Flow Rate: 0.5--10L/min

Weight16Kgs

Oxygen Concentration: 93% (±3%)

Power Consumption: ≤ 350W

Outlet Pressure: 6-10 psi (0.04-0.07 Mpa)
Input Frequency: 50/60 Hz
Sound Level: ≤ 40db

Input Voltage: AC 230V/110V ± 10%

Alarm: Power failure; high and low pressure; No flow; Low O2 Concentration

OPI Alarm: Audible and Visual alarm at low oxygen concentration (<82%)
